INTERCEPTOR 55 (16.5m) PILOT

INTERIOR



SPECIFICATION



L.O.A.

Length Moulded

BEAM

Beam moulded

Draft

Displacment

Lightship

Pilot seating capacity

Fuel  capacity

Engines

Power output

Gearboxes

Generator

Speed

Operational

Maximum

Certification







PILOT 55 HOME PAGE





DESIGN





INTERIOR





ENGINEERING





GALLERY





VIDEO 1

Hurricane force 12 and 6m seas







VIDEO 2

Discovery Channel, Raging planet documentary





VIDEO 3

Pathfinder in Force 10 and huge waves













55ft / 16.7m

16.1m

5m

4.6m

1.5m



24,000kg

12 pilots, 1-2 crew

2200 litres

Volvo D16

650hp

Twin Disc 5135

6kw



25kts

25kts

Lloyds

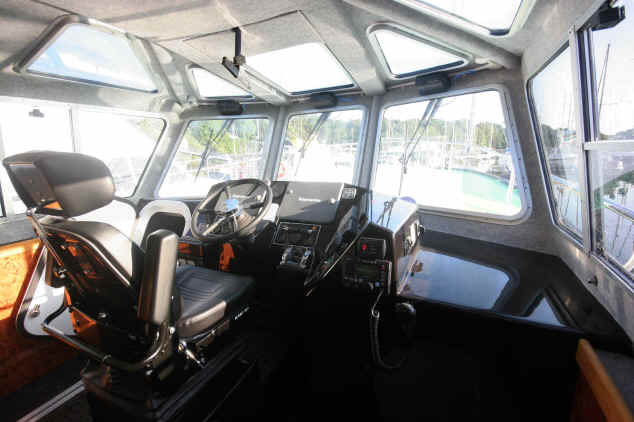

From an operational perspective, a centrally positioned helm position provides her coxswain with clear uninterrupted vision equally to port and st/bd, large side and overhead windows, all double glazed to prevent misting assist visibility when alongside ships. Her helm position has been especially designed to provide a focused and ergonomically efficient operators environment, which allows the coxswain to take full advantage of the Interceptors fine responsive handling.

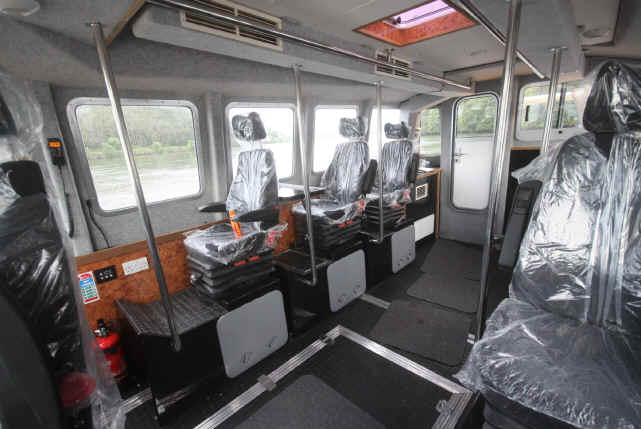

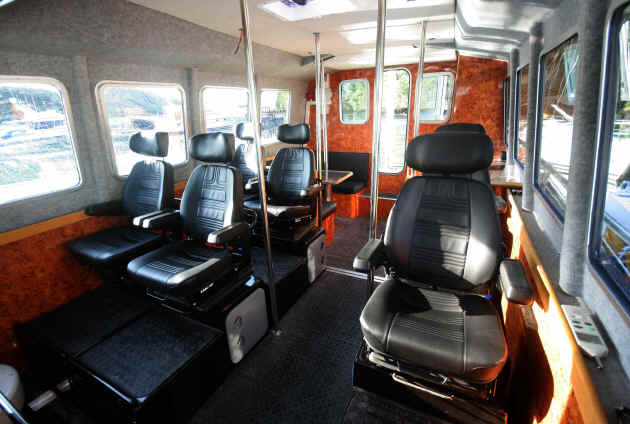

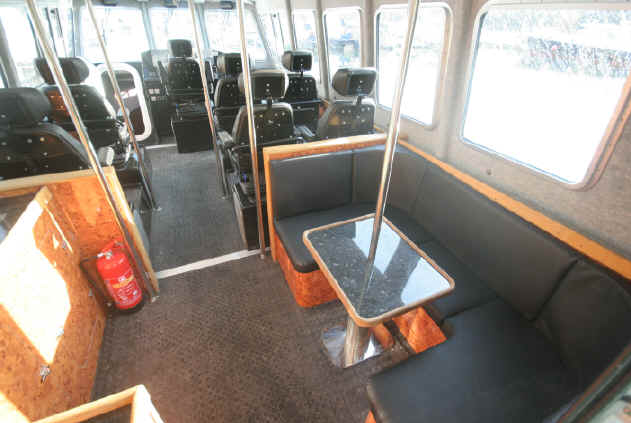

The 55 pilot has a very high level of fit out throughout the craft with the large wheelhouse providing enough space to allow combining the standard 6 pilot seating arrangement (although seating for  up to 12 pilots is available) on CAB hydraulic sprung seats, with a VIP area in the aft section of the cabin, comprising a very comfortable 6 person seating dinette with a table and a 6ft worktop opposite with substantial locker space incorporated. All internal furnishings are from walnut effect laminate, white headlining and grey sidelining providing a warm, high quality yet practical environment.

One of the main advantages of Safehaven’s design is the huge forward accommodation area allowed by placing the engines centrally under the wheelhouse. Forward there is sleeping accommodation afforded by traditional V berths combined with large bunk berths. A comfortable seating area along side the large galley area, a full size heads compartment with sink, grey waste management with holding tanks. Large wet lockers and under deck storage enhance her functionality and provides a very comfortable crew environment







Our modular GRP mould allows different wheelhouse configurations, below are two Interceptor 55 pilot / patrol versions with a more central wheelhouse configuration, allowing an aft work deck, See our 55 PATROL

Over the years we have captured many exceptional photographs and videos of our vessels operating in extreme conditions, check them out here- GALLERY
