INTERCEPTOR 55 (16.5m) PATROL

Comfort & prestige, our larger and very successful Interceptor 55 PATROL vessel combines luxurious accommodation, a high passenger capacity, strength and tremendous sea keeping abilities with 4 vessels supplied to Ports worldwide



SPECIFICATION



L.O.A.

Length Moulded

BEAM

Beam moulded

Draft

Displacment

Lightship

Pilot seating capacity



Fuel  capacity

Engines

Power output

Gearboxes

Generator

Speed

Operational

Maximum

Certification







PILOT 55 HOME PAGE







VIDEO 1

Hurricane force 12 and 6m seas







VIDEO 2

Discovery Channel, Raging planet documentary





VIDEO 3

Pathfinder in Force 10 and huge waves











55ft / 16.7m

16.1m

5m

4.6m

1.5m



24,000kg

12 pilots, 1-2 crew

2200 litres

Scania D16

650hp

Twin Disc 5135

6kw



25kts

25kts

Lloyds

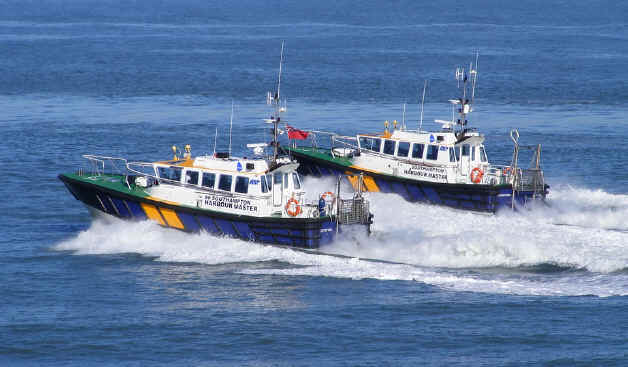

Above, two Interceptor 55 Pilot / Patrol vessels, 'Spitfire' & 'Pathfinder' supplied to the Port of Southampton, UK in 2009 / 10

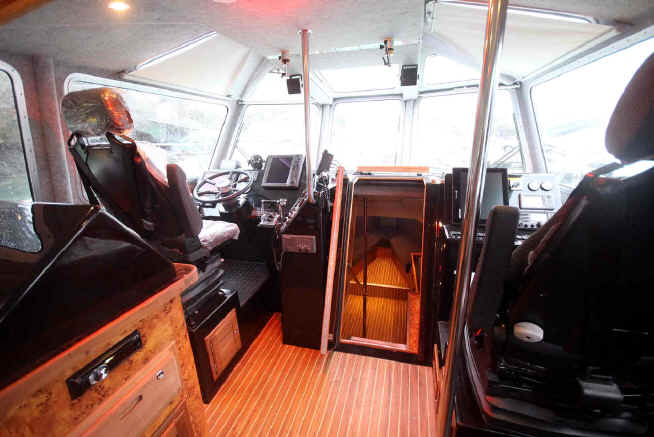

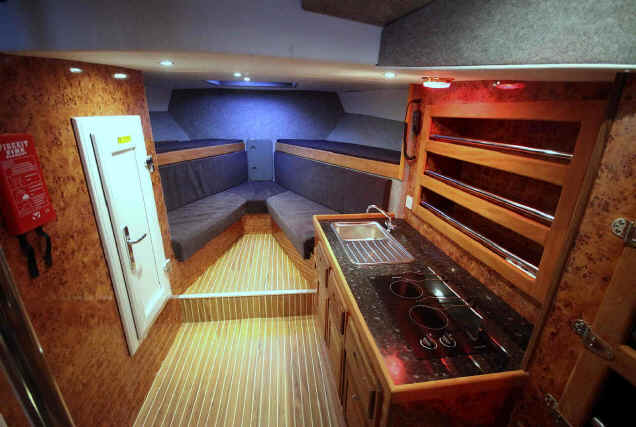

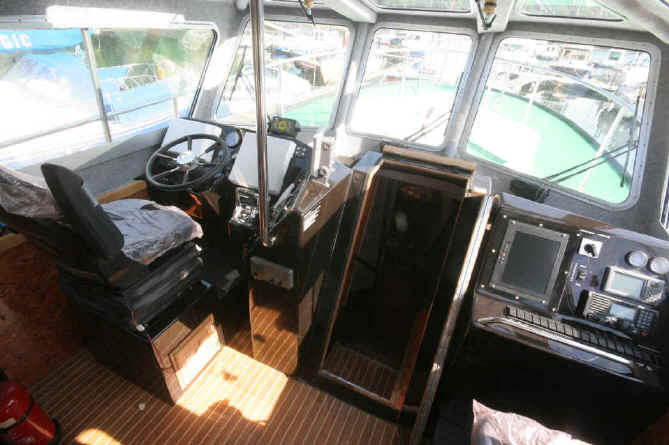

'Our Patrol versions are typically used as a patrol boats and also as pilot boats As one of their primary roles is providing 24hr cover on patrol they are equipped with full live aboard 'hotel facilities' and are fitted out to a very high standard, featuring  an 24,000btu air conditioning unit, a 6.5kw 1500rpm generator providing 240v throughout the vessel, full galley facilities with a 240v electric hob, microwave, hot and cold water. One of the advantages of the Interceptor design which has the engines mounted just aft of the LCG is the spacious forward accommodation area providing twin bunk berths, a large seating area and table, full galley with an abundance of locker storage. A midships cabin provides 10  individual  full height crew lockers. Her main cabin features a GRP helm moulding designed to encompass the helmsman with all navigational equipment, engine controls and instrumentation  easily visible and falling quickly to hand providing a focused driving environment.

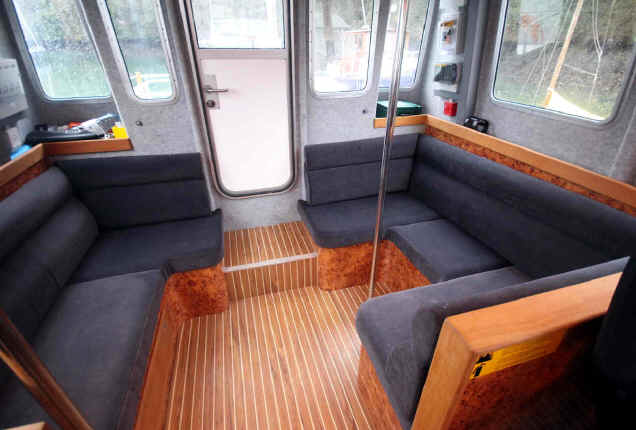

Behind the helm is a second larger dedicated navigation position with a large work top, angled instrument console and storage lockers allowing the navigator to monitor ship movements with a full paper chart assisting navigation throughout  busy waters. Opposite are two pilot seats for when the vessel is operating in pilotage duties. At the aft of the cabin she features a VIP area with a large, circular seating area with a table between to port and a second large 'L' shaped settee to st/bd, allowing comfortable seating if she is used to carry dignitaries. The cabin is been finished correspondingly to a high standard to provide a high class ambiance throughout.

Typically the version is powered by Scania D16 engines through Twin Disc V drive 'Quick Shift' gearboxes. The engines are rated at 650hp and give her  a 25kt max speed at her 27,000kg fully loaded displacment.  Engine removal is facilitated via an large opening hatch on the aft deck and will allow the engines to be lifted straight out of the craft.

The Patrol version has a flush  aft deck area which provides a seating area. Often one of the vessels roles will be the removal of floating flotsam such as trees, pallets and other debris that often finds its way into the channel and becomes a hazard for boat users. To facilitate this the Patrol version is fitted with a large stainless steel basket, hydraulically operated that can be lowered down 400mm below the surface to recover flotsam.

Her hull design is a twin chine deep V, with a full  length keel, this gives her a soft ride into head seas, tremendous stability running beam on in big seas with little rolling and great directional stability downwind. All Southampton's crews have been delighted with her sistership 'Spitfire's' handling and have praised her seakeeping abilities Safehaven marine have supplied pilot boats to ports throughout Europe, their vessels have gained a deserved reputation for excellent sea keeping and tremendous strength.

'PATHFINDER' The second of VT Critical services  new Interceptor 55 pilot / patrol vessel for the Port of Southampton



OWNERS TESTIMONIAL & FEEDBACK

Pathfinder is now in service alongside her sister ship Spitfire operating as pilot / patrol duties in Southampton's waters. Her crew are very happy with her and we have received a couple of nice e mails from her crew;

Hi Frank

I have used Pathfinder now for 8 watches and she is a fantastic boat all round, the changes you have made are spot on and she is a very well balance boat, a credit to you and your team. I am gutted that I am on leave now for 2 weeks as I miss driving the launch so much !!  Thank you Frank and we will all do our best to promote our boat which we are all so proud off !! Hope to see you at the work boat Show and have a chat !  If you don't mind keeping us updated with the 48 !

Regards

Gary



Frank

Thought You'd appreciate some constructive Feedback on Pathfinder! These are my views/opinions but I believe the other 9 users are of the same mind. We are operating in 'sheltered waters'( none of your 8m seas here thank goodness!) Though conditions in the Western Solent can produce very short and steep waves. We also patrol port areas in movement restricted areas. The alteration of weight distribution has made a big difference to trim .We hardly use the Trim tabs except in messy head sea stuff, when it makes movement  'less lively', compared to the FRCV's its sooo much more benign.

We are all very appreciative of the fact that you listened to how we would like the Pathfiders helm position/instruments/switches and to my mind it really is spot on. Thanks. An inch  plinth under the throttle control would prevent the helm operator having to lean forward to adjust controls but it is a minor niggle. 'Quick shift' is the only way to go! I really hadn't realized how darn useful it would be when operating in port confines. Just trickling ahead to Synching the engines when patrolling ships to great instant sprint response when needed. I agree that the noise levels ARE even lower than Spitfire which makes 12 hour watches so much less wearing.

The improved Galley area is a big improvement on Spitfire too, as is the improved internal lighting. A couple of months back I took Spitfire out to the Nab pilot boarding area in 3m seas alongside a large tanker. She behaved very well and I think even the Nelson 48 crews were impressed.

So Pathfinder is a great boat that I actually enjoy maneuvering/operating. Well done!

Regards

John Hyland

Ps.. yeah and thanks for puttin' that music system in! It really does make a big difference.

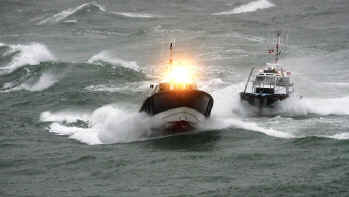

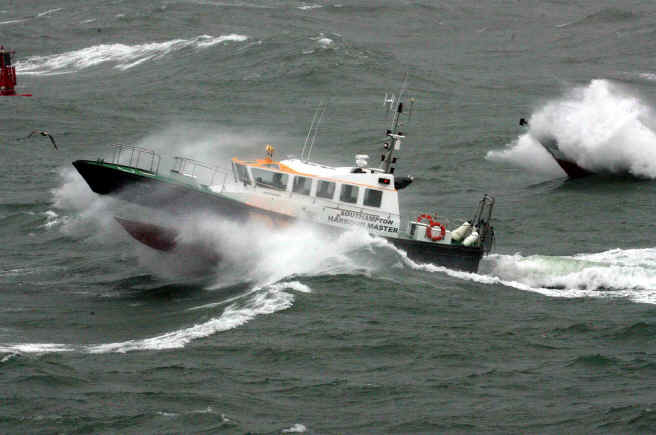

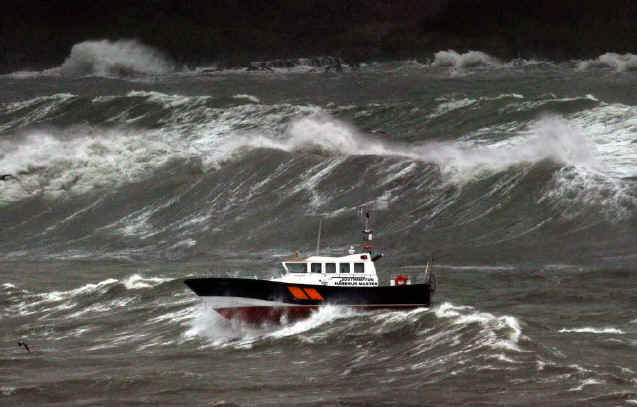

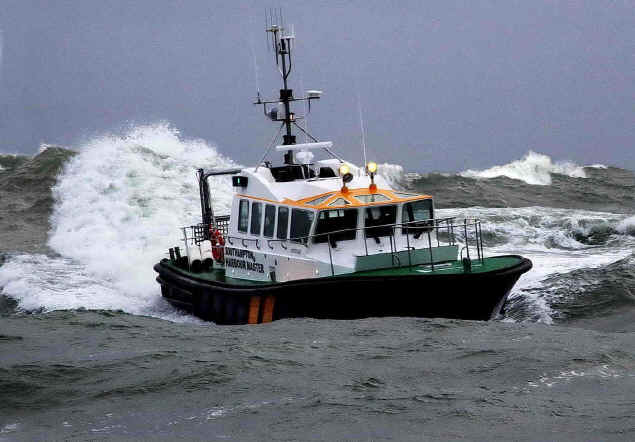

Below, some nice photos of Pathfinder during first rough weather sea trials, you can see a video of the trials here-  SEE THE VIDEO









Over the years we have captured many exceptional photographs and videos of our vessels operating in extreme conditions, check them out here- GALLERY
