INTERCEPTOR 48 (14.7m) PILOT

ENGINEERING



SPECIFICATION



L.O.A.

Length Moulded

BEAM

Beam moulded

Draft

Displacment

Lightship

Pilot seating capacity

Fuel  capacity

Engines

Power output

Gearboxes

Generator

Speed

Operational

Maximum

Certification





PILOT 48 HOME PAGE



DESIGN





INTERIOR





ENGINEERING





GALLERY





VIDEO 1

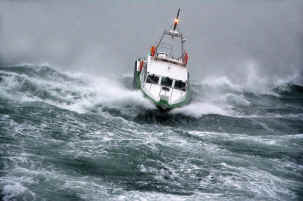

Bordeaux Pilot vessel in rough weather trials.







VIDEO 2

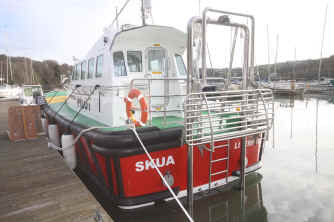

Sea keeping & handling trials of Liverpool pilot boat Skua







48ft / 14.7m

14.2m

4.4m

4.1m

1.35m



17,500kg

6-8 pilots, 1 crew

2000 litres

Volvo D13

500-550hp

Twin Disc 5114





24-25kts

24-25kts

Bureau VerItas

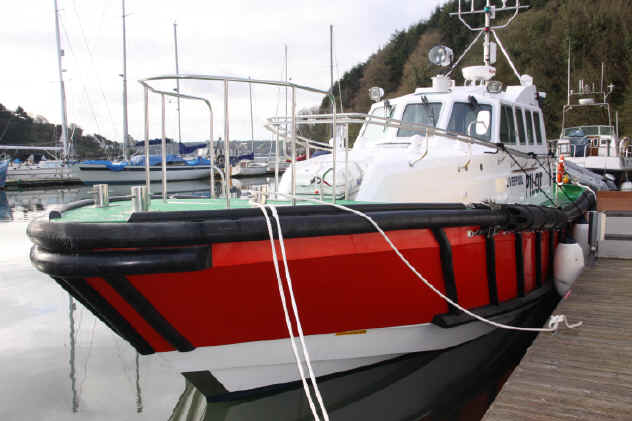

The Interceptor 48 is typically powered by twin Volvo D12 / 13 500/550hp engines and twin Disc 5114 or SC Quick shift gearboxes providing the vessel with an operational speed of 24-26kts. The vessel is 14.7m LOA, with a 4.3m beam and 17,500kg Displacement.  The pilots are well catered for with the vessel featuring air conditioning with high level outlets throughout the main cabin providing a comfortable environment. Double glazing on all windows ensures good visibility is maintained at all times without the usual problems of misting in poor conditions. A very high level of fit out has been undertaken, with teak and holy cabin soles, walnut Formica laminates and trimming ensure the 48 provides a luxurious working environment, augmented by very low noise levels of just 75db. The Interceptor 48' is very heavily fendered with 150x150mm D section rubber main gunwale fendering augmented with Safehaven's unique sacrificial shoulder fender system, ensuring pilot boarding's in rough conditions are soft, with impacts well cushioned and the main fender and hull structure fully protected. Multiple diagonals and a lower run further protect the vessel, Additional fendering at the rounded bow allow the vessel to be used for occasional 'pushing' duties ,to assist pilots in small ship manoeuvres. A full electronic package with displays positioned flush in a GRP 'wrap around' helm console giving the helmsman excellent command of the vessel, with all displays clearly visible, Safehaven's usual special attention was applied to providing the utmost comfort and visibility for the helmsman.

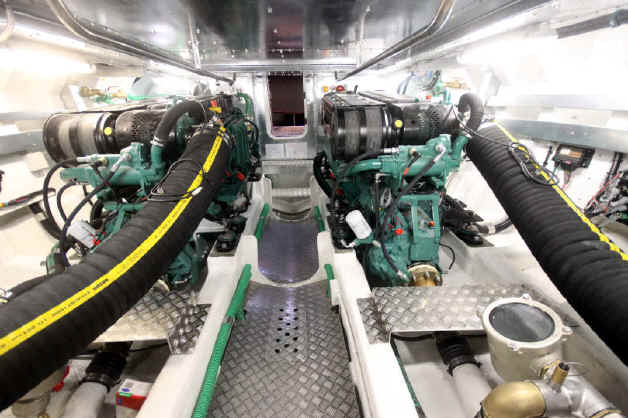

The engine room is very spacious with all service components easily accessible.

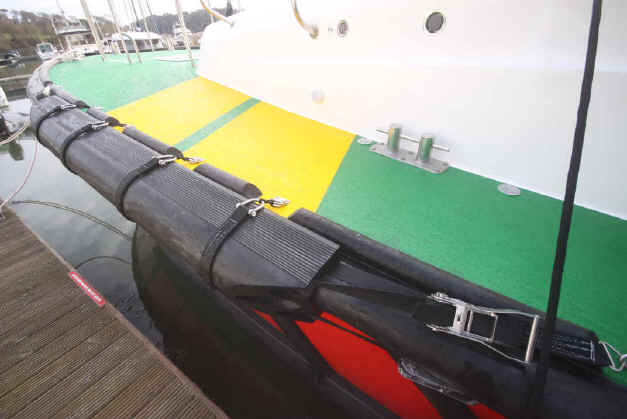

Below- a refinement on our proven sacrificial fender system greatly lessens impacts during boarding, and successfully protects the vessels main fenders.

Other features are a 240v 3.5kw generator allowing onboard 240v supplies when underway. MOB recovery is carried out by a further refinement of Safehaven's tried and tested transom operated recovery platform, allowing an injured pilot to be safely recovered from the sea unconscious. Special stainless rear view mirrors were developed by Safehaven at the ports request and prove very useful during boarding maneuvers. Electro hydraulic trim flaps fully protected in recess mounded under the transom provide control over running trim.



Over the years we have captured many exceptional photographs and videos of our vessels operating in extreme conditions, check them out here- GALLERY
