WILDCAT 40 / 12m CATAMARAN

INTERIOR



SPECIFICATION



L.O.A.

Length Moulded

BEAM

Beam moulded

Draft

Displacment

Lightship

Seating capacity

Fuel  capacity

Engines

Power output

Gearboxes

Generator

Speed

Operational

Maximum

Certification









DESIGN







INTERIOR







ENGINEERING







GALLERY





VIDEO 1

WLDCAT 40, Ocean Ranger in force 8 and breaking seas







VIDEO 2

Rough weather video of La Reunion Wildcat in big waves







VIDEO 3

WLDCAT 40, Seaflower Rough weather trials, force 7-8 off Cork, Ireland







VIDEO 4

WLDCAT 40, MISBEHAVIN. Rough weather video, twin boat, force 7-8









VIDEO 5

WLDCAT 40, BLACK cat. Rough weather trials, force 7-8 off Cork, Ireland











40ft / 12m

11.8m

4.9m

4.8m

1.3m



12,000-14,000kg

12 pass / 3 crew

1000 litres

Volvo /Cat/Yanmar

250 - 500hp

Twin Disc 5126

9kw



16-25kts

30kts+

MCA Bureau Veritas

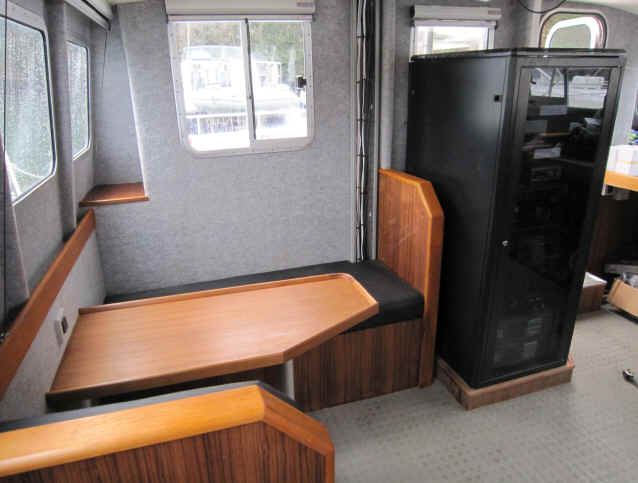

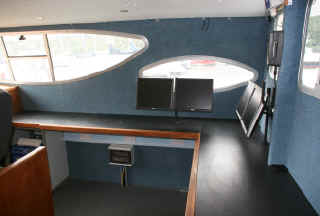

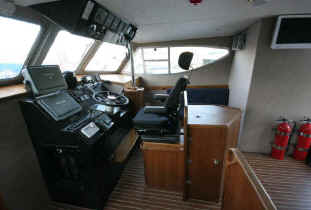

The main accommodation on the Wildcat 40 is fully customizable, typically on a hydrographic vessel it will incorporate a central helm position with alongside seating for the hydrographical equipment operator / navigator and provides panoramic vision all round with all the electronic navigation and hydrographic displays situated in a large console. A work bench is fitted to the port side of the cabin stretching its full length, all the computers for the hydrograpic equipment are stored in a vertical rack / cabinet fitted at the aft of the cabin. To port is a large dinette seating area with a table between. In the st/bd hull is a large heads compartment which is fully lined in white Formica fitted with an electric toilet and sink. In the port hull f/wd is a full galley with 240v hob, sink, fridge and storage lockers. Onboard electrical power is from a 10kw 240v generator supplying multiple sockets throughout the vessel. Other equipment can include a 1500W electric capstan, Electric 95kgf bow thruster, Electro hydraulic 013T HIAB crane, Dive platform, security alarm system and a full compliment of  navigation equipment. The vessel can also fitted with a 24,000btu air conditioning unit with high level outlets in the cabin roof for efficient cooling, The Wildcat is very quiet, only 70db being recorded in the cabin at 15kts, reducing to just 65db at 7kts survey speeds.



Below are examples of interiors on previous vessels.

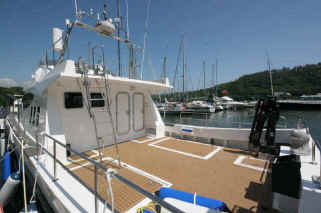

Above, the large aft cockpit which can be fitted with a HIAB crane, below different seating arrangements possible, and the high quality that can be offered.
