'BARRACUDA'


High speed, Low RCS 'Stealth' Interceptor / Patrol craft for military & law enforcement roles



Main Safehaven home page   Home        Overview       Specification       Tactical capabilities       Weapons      Brochure       Technical drawings      Contact us

Gallery

VIDEO

Video demonstrating Barracuda's design and weapons system

Video demonstrating Barracudas seakeeping and handling

PHOTOS

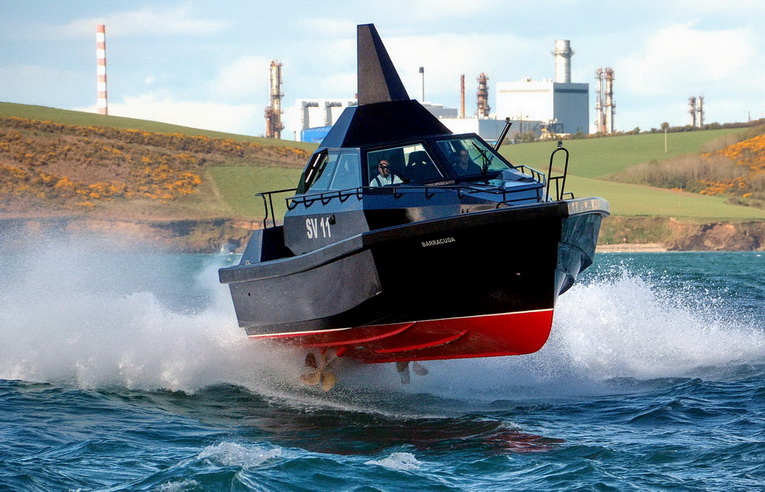

Props out 1_resize.jpg (457496 bytes)

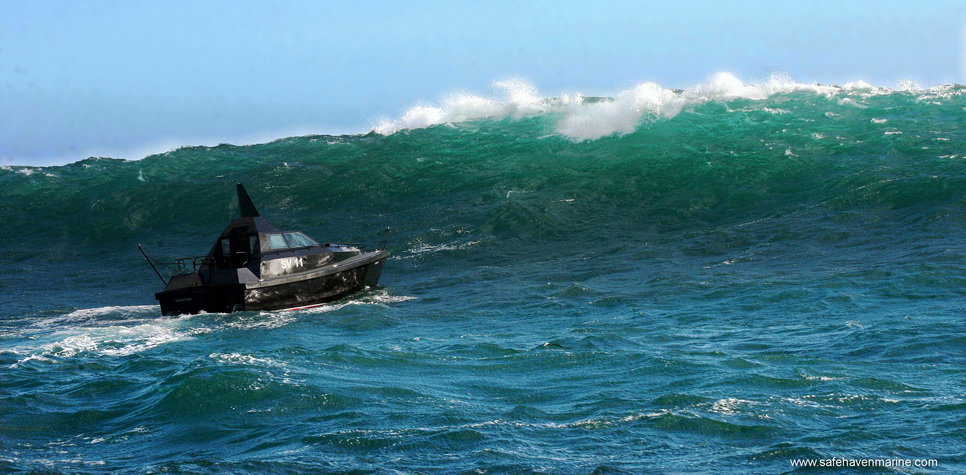

Big wave 3_resize.jpg (438641 bytes)


Big wave 5_resize_resize.JPG (295695 bytes)




SPECIFICATION

'Barracuda' High speed low RCS Interceptor / Patrol vessel.

L.O.A.                   (Length overall)

11m 13.7m (variable)

Length moulded   (GRP hull only)

11-13m

Beam Moulded     (GRP only ex fender)

3.85m

Beam overall        (Including fenders)

3.95m - 4.2m (depending on fender size)

Depth                   (Highest point of deck to at bow to lowest

                             point of hell, ex keel)

2.19m

Draft                     (Depth of hull below waterline)

1.15m with propellers, .85m with waterjets.

Displacement                                                           Lightship

9,500kg - 12,500kg (Variable, depending on length & equipment installed)

                                                                              Fully loaded

Up to 14,500kg (Variable, depending on equipment installed)

Fuel capacity

1,000 litres

Water capacity

50 litres

Crew capacity (main cabin)

5-6 persons 11m version, (10 persons on 13m versions)

Passenger capacity (f/wd cabin)

4 persons (depending on weapons installed)

Subdivision

4 x separate watertight compartments



Speed       Maximum speed

35-40kts+ (depending on propulsion & equipment specification)

Range

200nm+



Design standards

Lloyds SSC rules area G2



Machinery

Main engines

2x electronic diesel engines

Maximum power output

600hp

Gearbox

ZF325

Propulsion

Conventional sterngear

Conventional sterngear:  26" Dia propellers, 4 blade, 62.5mm dia Duplex steel shaft, Glass / bolt in Bronze 'P' bracket, Pendant hung bronze cast Rudder.

Waterjets

MJP Ultra Jet 340 waterjet

 For full detailed specification please contact Safehaven Marine
