INTERCEPTOR 55 (16.5m) PILOT

THE INTERCEPTOR 55, BRINGING COMFORT AND PRESTIGE TO THE LARGER PORT, HIGH PILOT CAPACITY, STRENGTH AND DEPTH OF ENGINEERING WITH TREMENDOUS SEA KEEPING ABILITIES



SPECIFICATION



L.O.A.

Length Moulded

BEAM

Beam moulded

Draft

Displacment

Lightship

Fully loaded

Pilot seating capacity

Fuel  capacity

Engines

Power output

Gearboxes

Generator

Air-conditioning

Speed

Operational

Maximum

Certification







PILOT 55 HOME PAGE









55ft / 16.7m

16.1m

5m

4.6m

1.4m



23,500kg

27,000kg

6 pilots, 1-2 crew

2200 litres

Volvo D16

750hp

Twin Disc 5135

2X 7kw

3x 24,000btu



25-26kts

28kts

Lloyds

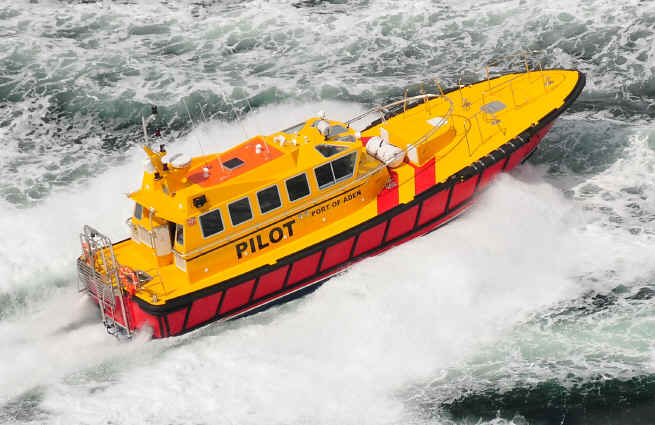

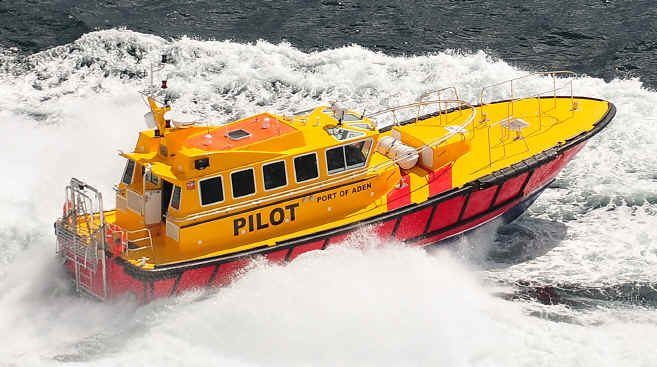

NEW INTERCEPTOR 55 PILOT VESSEL FOR THE PORT OF ADEN, YEMEN NOW LAUNCHED.





The Port of Aden in Yemen's new pilot vessel has now been launched.  She is powered by twin Volvo D16 750hp engines through TwinDisc 5135 gearboxes giving her a maximum speed of 28kts comfortably exceeding her contract requirement by a large margin. On her delivery voyage from Youghal to Cobh her performance proved excellent, with light responsive steering, perfect trim and very low noise levels, providing a comfortable environment for her pilots and crew. She is built for very hot climate operation with a high degree of redundancy, she features twin 7kw generators powering 3x 24,000btu air conditioning units and high power engine room ventilation fans. This will ensure she will be able to operate in the high temperatures experienced in Yemen efficiently and comfortably. Her fit out features seating capacity for 6 pilots with full live aboard facilities incorporated into her spacious air conditioned forward cabin.

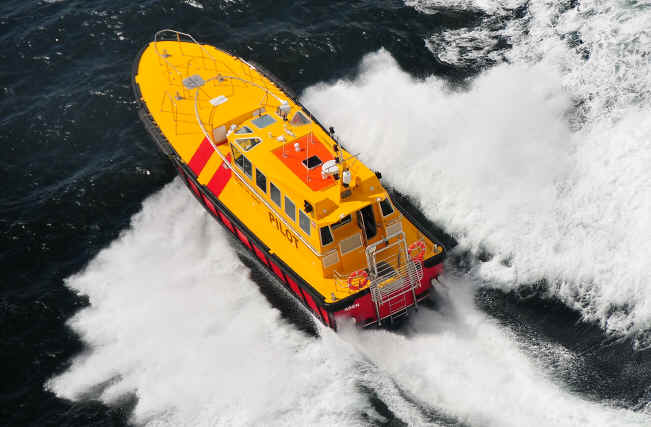

Below, see a great video of her, includes Ariel footage taken from a helicopter SEE THE VIDEO

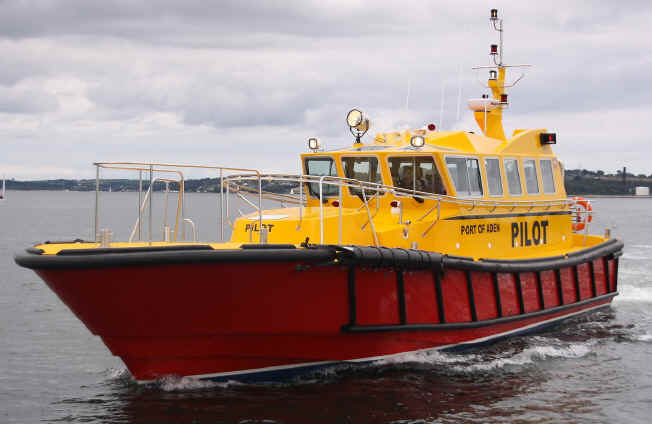

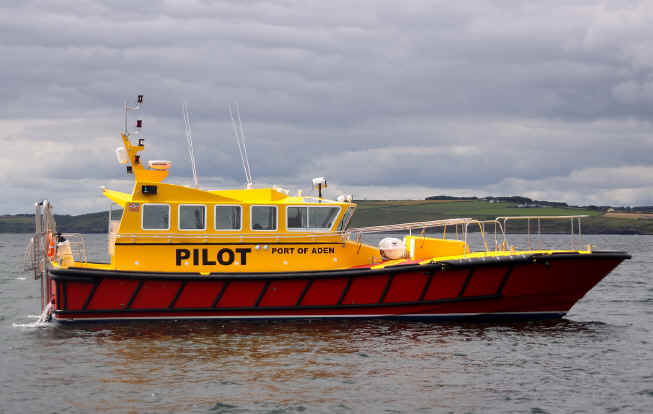

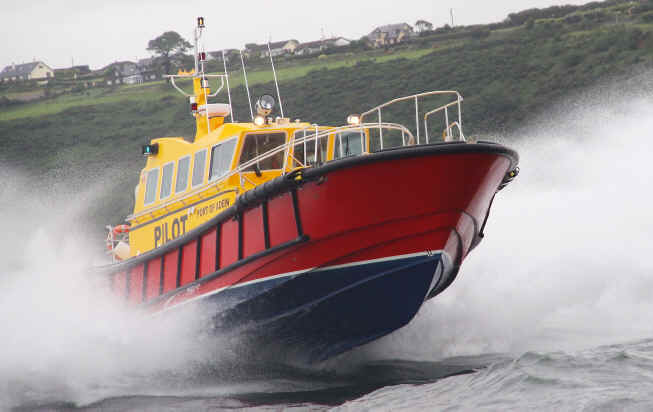

Heavy duty rubber fendering  protects the hull with substantial 150x150mm fendering along her gunwale with an addition run at her transom quarters, numerous diagonals and a lower run along her 2nd chine  just above the waterline, In addition she is fitted with our own proven 'Sacraficial shoulder fender' system. The Interceptor 55's deep V, twin chine hull provides exceptional seakeeping abilities, high levels of stability and a very soft ride in to head seas.





Below, See a video of her undergoing pilot boarding trials SEE THE VIDEO

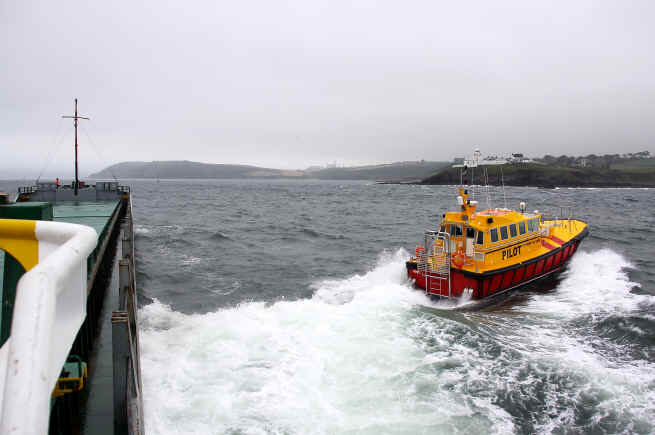

Her pilot boarding area is wide, spacious and fitted with strategically positioned safety rails providing a safe working area for pilot and crew, who benefit from her raised sheerline and flared bow, keeping decks dry and safe.





From an operational perspective, a centrally positioned helm console provides her coxswain with clear uninterrupted vision equally to port and st/bd, large side and overhead windows assist visibility when alongside ships. Her helm position has been especially designed to provide a focused and ergonomically efficient operators environment, which allows the coxswain to take full advantage of the Interceptors fine responsive handling. Twin 24,000btu air conditioning units are fitted at the aft of the cabin and with cold air ducted up to over head outlets running the length of the cabin ensuring efficient cooling of the cabin. Her large main cabin features 6 pilot seats, two of which have tables in front of them, numerous overhead and vertical grab rails provide safe passage in rough weather.







Her design features a large, spacious  forward accommodation area ,allowed  for by placing the engines centrally under the wheelhouse. Forward there is sleeping accommodation  with two large bunk berths. A comfortable seating area along side the large galley area, The cabin contains a full size heads compartment with sink and shower. Large wet locker and under deck storage enhance her functionality and provides a very comfortable, fully air conditioned crew environment.

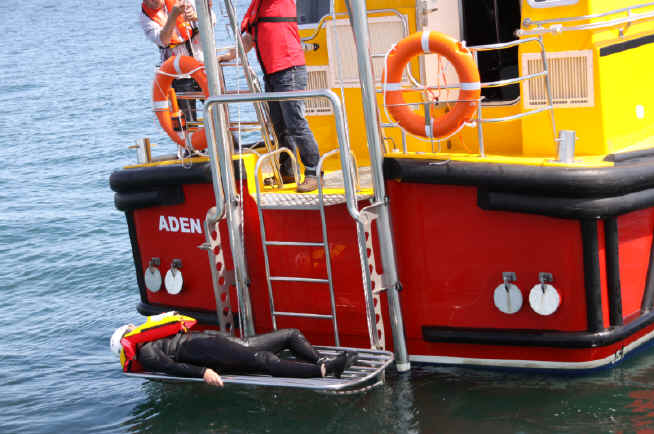

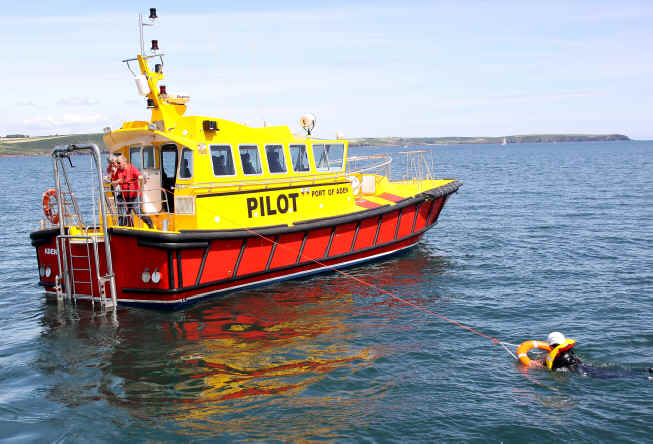

Above & below, testing our MOB recovery platform.
