INTERCEPTOR 38 (11.5m), GENESIS SPORTS ANGLING / DIVE BOAT



SPECIFICATION



L.O.A.

Length Moulded

BEAM

Beam moulded

Draft

Displacment

Lightship

Passenger capacity

Fuel  capacity

Engines - Single

Twin

Speed

Certification











GALLERY









Videos featuring the Genesis.



VIDEO 1

The 38 Pilot version in rough seas







VIDEO 2

Rough weather compilation video featuring the Genesis







VIDEO 3

The Genesis alongside a 42 pilot in rough seas











38ft / 11.7m

11.5m

3.8m

3.6m

1.2m



7,500 - 11,000kg

12

1000 litres

380-700hp

300- 420hp

22-32kts

MCA



DESIGN

Developed in 2006 our Interceptor 38 called the 'Genesis' Closely based on our hugely successful Interceptor 42’s hull, but incorporating a number of refinements to provide even higher levels of performance and seakeeping. Her beam is a wide 3.6m moulded, (12ft 4” overall) just  short of the 42’s beam, and much wider than the old 2000 model 38’s, providing her with high levels of both static and dynamic stability. The hull has indeed very high reserves of stability over a large displacement range, as it is used on our Interceptor 38 pilot boat which has demonstrated exceptional seakeeping abilities. Her waterline entry is fine at 58 degrees to cut through waves even better, and she has a midships deadrise of 22 degress meaning she will not slam in large waves. And of course her steeply raked stem and cutaway forefoot means she has the same excellent handling in following seas. Her unique double chine hull design means she is an an exceptionally dry boat.

We have chosen an offset Island Wheelhouse design for her superstructure, taking advantage of her wide beam, it provides loads of gunwale space for angling and a large deck area, but still provides good accommodation space, which can be varied to suit her intended role. Both long and short cabin versions are available.

The Genesis can be fitted with single or twin engines, typically a single engine would be  CAT or Volvo 9 litre engines up to 575hp to provide a 26-27kts maximum speed, or twin Yanmar 380hp engines for 32kts+

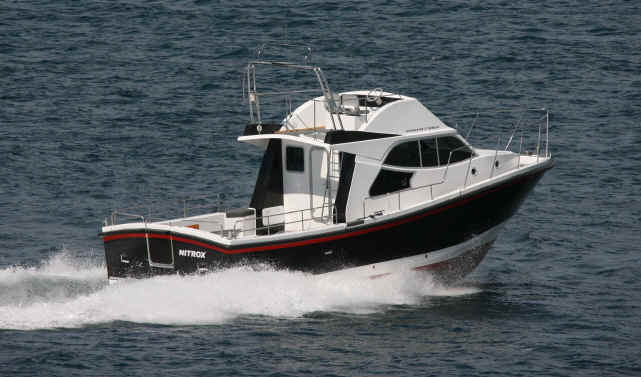

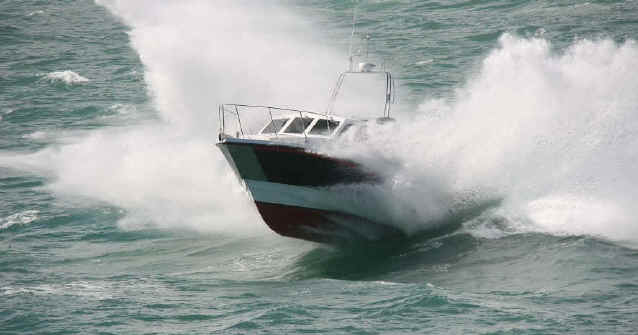

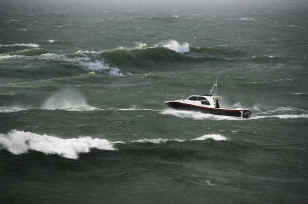

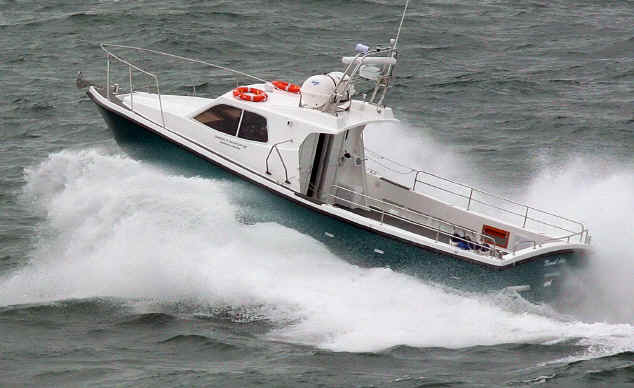

Below, some photos of her demonstrating her excellent seakeeping, handling and performance, whilst showing off her head turning style and below right, our professional pilot boat which uses the same hull.

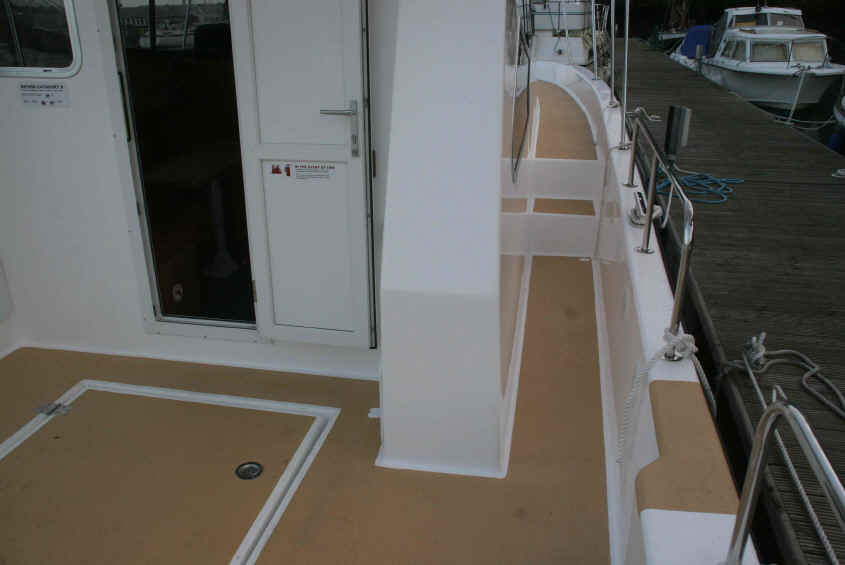

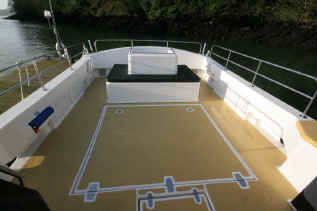

Large aft cockpit with plenty of space for anglers or divers, and he walkway up the st/bd side of the cabin for safe access to the bow and extra deck area.



INTERIOR

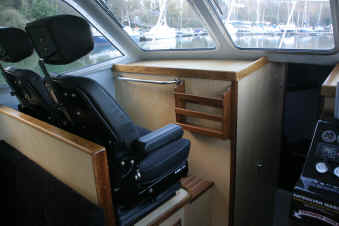

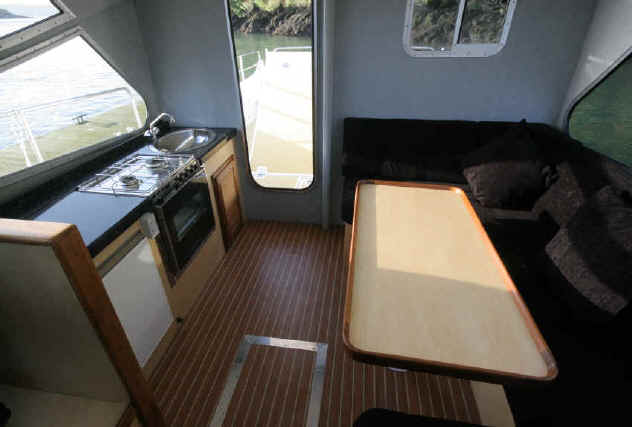

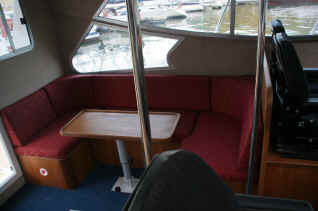

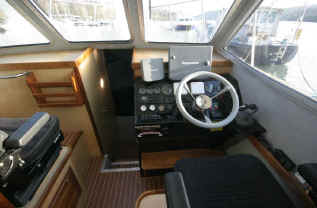

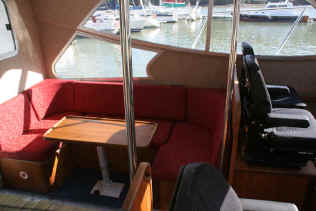

Her interior is fully customizable but will typically feature and open plan layout with twin V berths or large single berth in the f/wd cabin, a separate heads compartment. In the main cabin a st/bd helm position with a hydraulic sprung CAB seat, the helm console is driver focused with a horizontal adjustable wheel and all controls falling easily to hand, opposite a twin seat navigators position with chart area in front. Behind lies a large seating dinette with table and opposite a full galley. On commercial versions the galley is in the f/wd cabin and the heads is aft on the main cabin accessed from deck.





ENGINEERING



 The Genesis has a depth of engineering  not expected in this type of vessel, a consequence of our experience in professional pilot vessels, the hull is built to Lloyds SSC requirements and is exceptionally strong, with substantial transverse and longditudal scantlings. Her engineering and electrical instalation is to international profesional standards in design and execution.

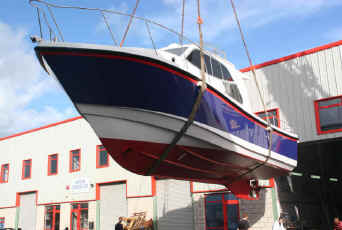

Above, Her keel design has been optimized to provide the least drag and resistance and maximum directional stability. Because the Interceptor hull is a true deep V she has a deep draft at the bow and amidships naturally, so there is no need for a deep keel here, as her deep V sections act as a keel in itself. Only at the transom where her draft reduces is the keel needed and here it is deep, hydrodynamicaly optimized, and faired into the propeller tunnel to provide a smooth, clean flow of water to the propeller. This results in zero cavitation and a smooth, quiet ride. In addition a skeg protects the prop and rudder from ropes and floating debris.

Twin spray rails reduce wetted area at higher speeds, but are foreshortened at the bow to eliminate chine knock at low to medium speeds.

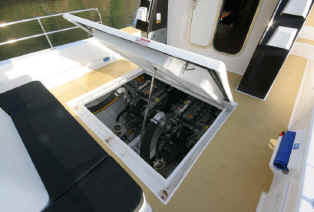

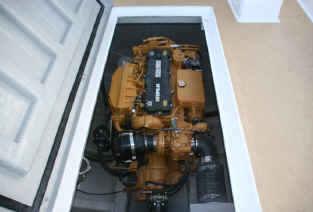

Shown here the boat is fitted with the new Caterpillar C9 @ 575hp, or Twin Yanmar 380hp.Easy access is provide right around the engine.

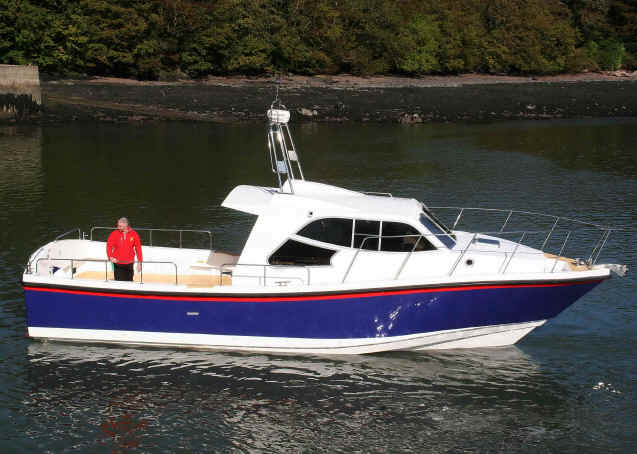

Below, the short cabin commercial version, showing her large aft deck area. Perfect for commercial use.

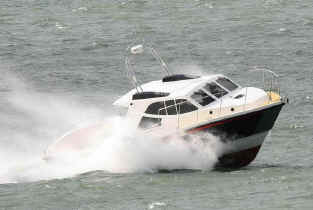

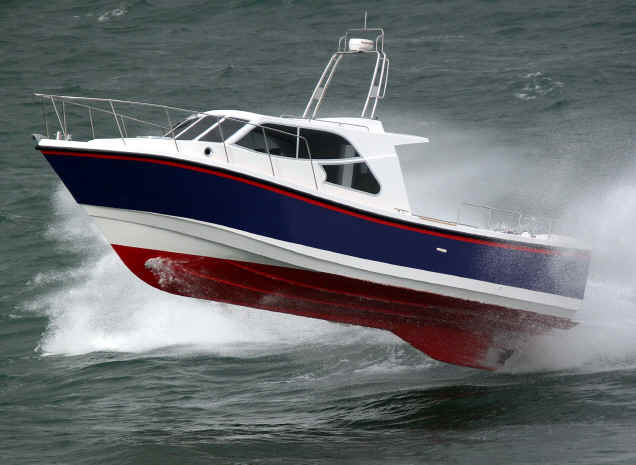

The Genesis 38's fine, gracfull lines can  be appreciated here.

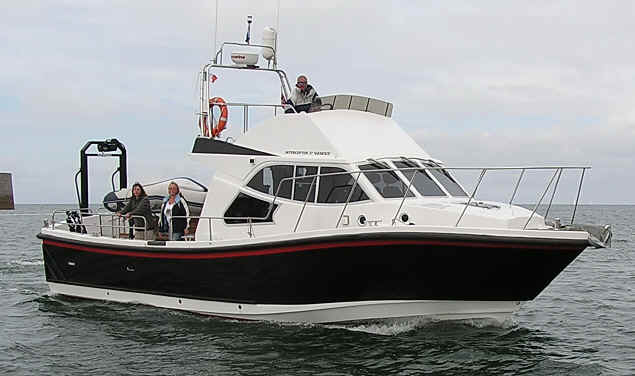

Above & below, the Sports flybridge version
