INTERCEPTOR 38 (11.7m) PILOT

Multi- purpose pilot boat, economical, price competitive, capable of Pilotage, tug & pushing duties, rope handling and light cargo transfer. Most suitable for smaller Ports where a true multi role vessel is preferable.



SPECIFICATION



L.O.A.

Length Moulded

BEAM

Beam moulded

Draft

Displacment

Lightship

Pilot seating capacity

Fuel  capacity

Engines

Power output

Gearboxes

Generator

Speed

Operational

Maximum

Certification









PILOT 38 MAIN PAGE









DESIGN









INTERIOR









ENGINEERING









GALLERY



VIDEO 1

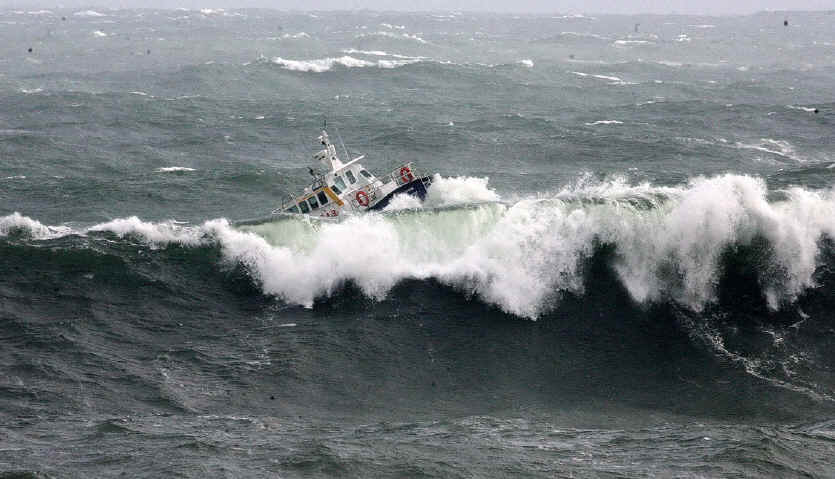

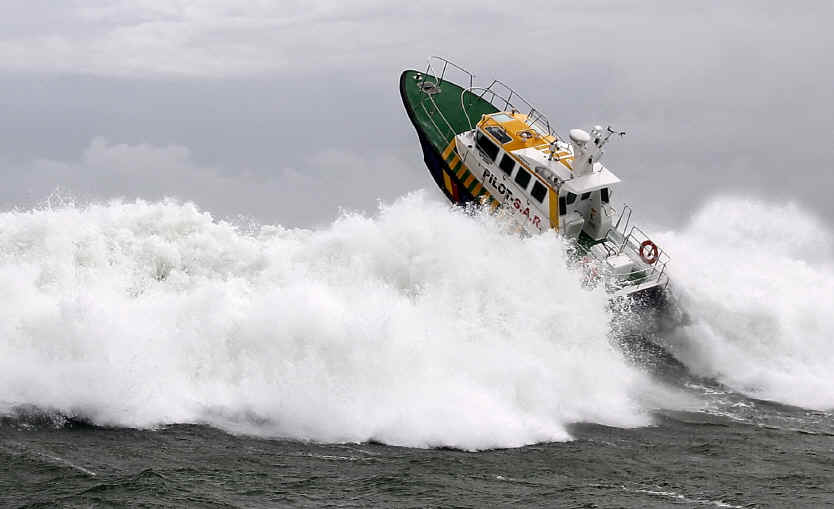

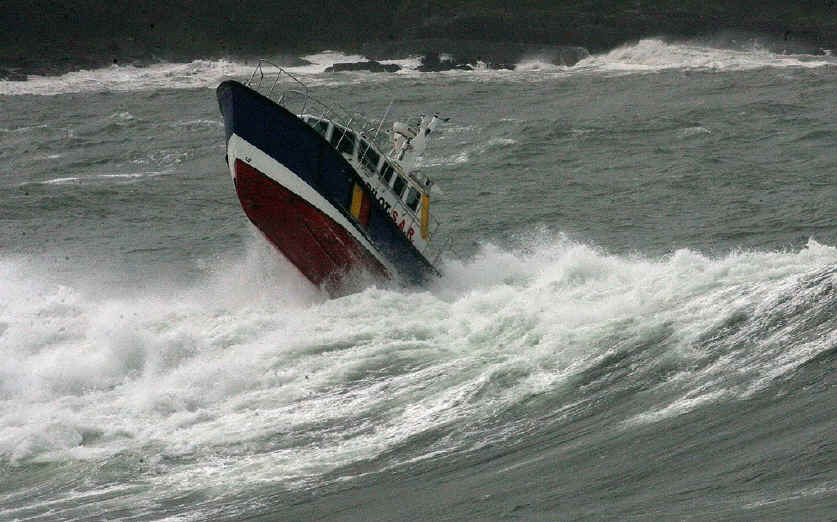

Extreme sea keeping trials, force 9, 5m seas







VIDEO 2

Extreme sea keeping trials, 10m breaking waves









VIDEO 3

Alongside ship boarding trials









VIDEO 4

Rough weather Sea keeping trials in force 8 & 3.5m seas









38ft / 11.7m

11.5m

3.81m

4.1m

1.3m



12,500kg

4 pilots, 1-2 crew

1500 litres

Volvo D9

425hp

ZF V drive





22-23kts

25kts

Bureau Verttas

Extensive sea trials have been carried out by the crew and pilots at Safehaven's home Port of Cork, and the vessel has proved to posses excellent alongside ship handlings trials, easily holding station and breaking clear and proving very responsive throughout. Rough weather sea trials confirmed she possessed the same renowned sea keeping levels as Safehaven's larger Interceptor hulls. Safehaven expect this smaller pilot boat to be very popular, as it is a real 'multi purpose' vessel allowing the port to combine multiple duties within one design, and a design that is both particularly striking on the water, and also, unusually for a smaller design being pleasingly proportional, having the look of a much larger vessel. All this is offered in a design that is both economical to purchase and operate, and should be of special interest to smaller ports.

The Interceptor 38 is available as a self righting version, capable of operating in extreme conditions and able to recover from a 180 degree roll over

Below, the sequence of photos of her during her self righting test

See the video of here self righting test SEE VIDEO

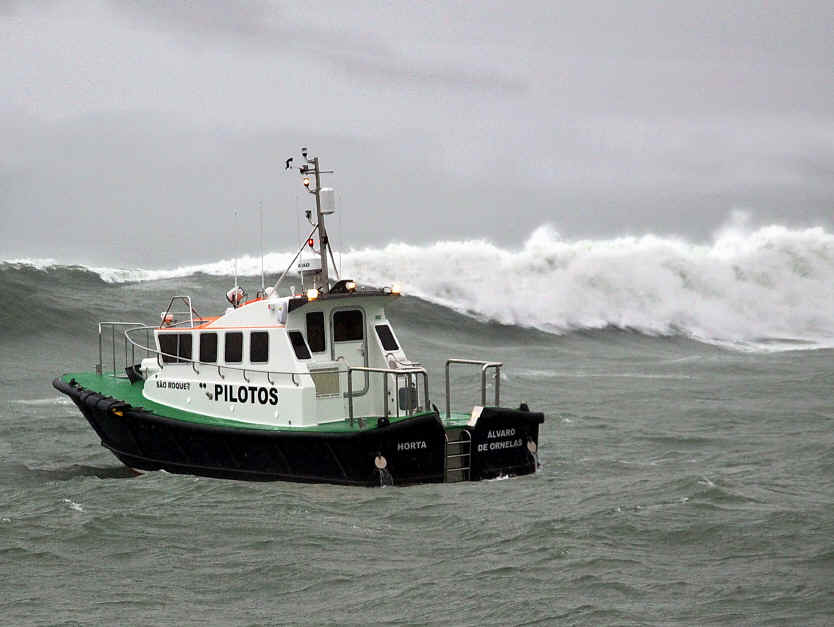

'ALVARO DE ORNELAS' The 2nd Interceptor 38 Pilot vessel for SAO ROQUE, AZORES

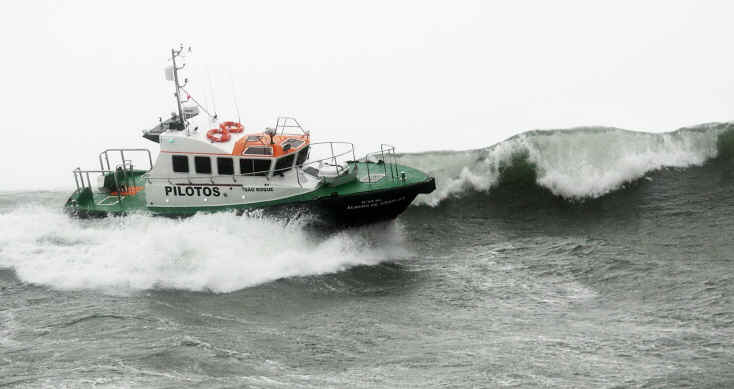

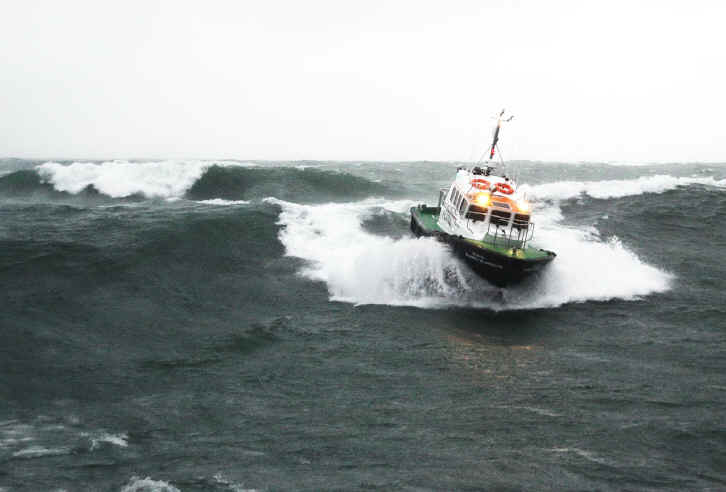

As part of our contract to supply four of our Interceptor 38 Pilots to the Islands of the Azores, we have now launched Alvaro de Ornelas. Identical to her sister ship Joa Vaz Corte- Real launched two months ago, she underwent rough weather sea trials together with her sister ship. Conditions were quite extreme, just as to be expected of an Interceptor pilot boat built by Safehaven,  with Force 9 S/W and 47kts wind speeds pushing up a 3.5m+ breaking seas, we of course made a video and took some great photos, see below.

  SEE THE VIDEO Rough weather sea trials in Force 9 & 3.5m seas

VIDEO

Extreme sea keeping trials, force 9, 5m seas

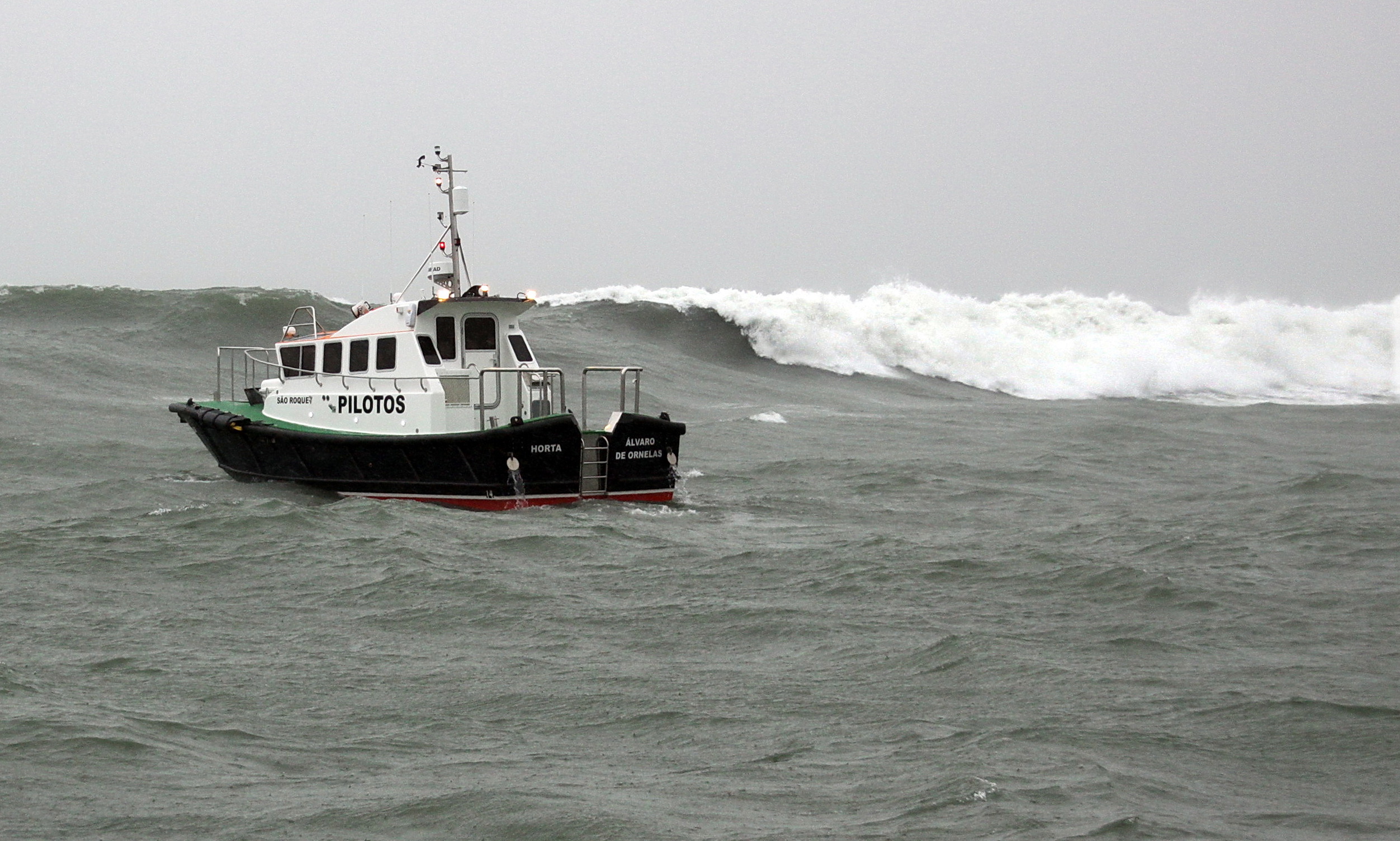

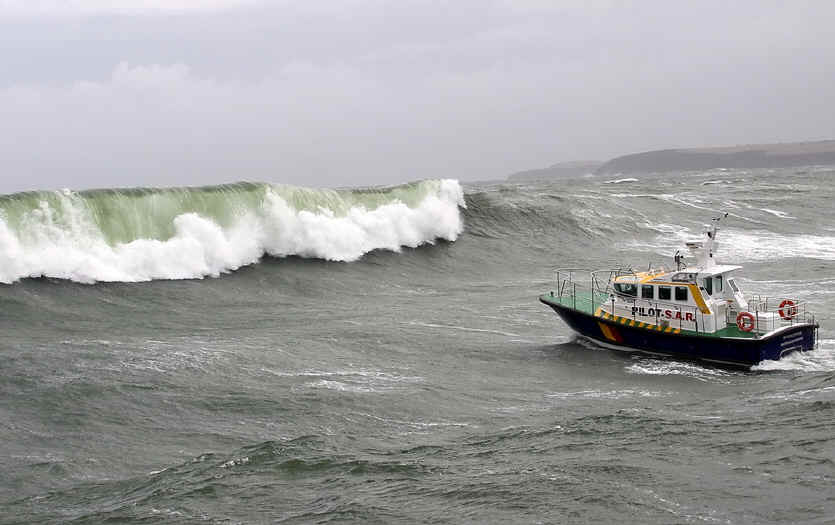

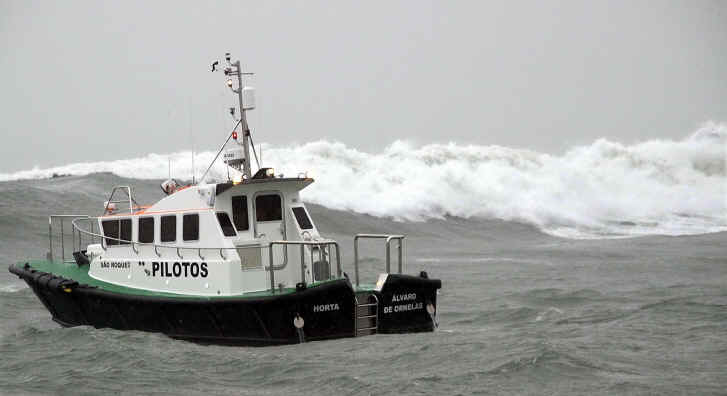

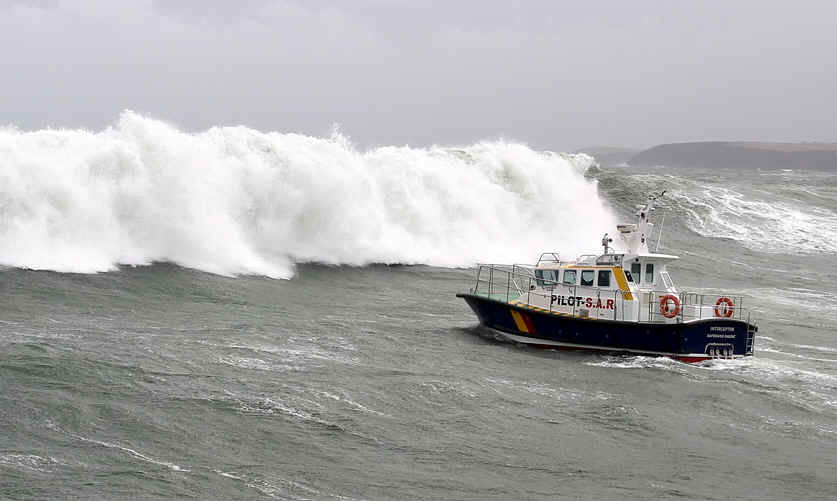

Above & below, squaring up to 7m breakers



Her seakeeping has been fully tested in 47kts of wind and she displayed the Interceptor's typically excellent levels of seakeeping, being very soft into a head sea, a result of her fine 55 degree bow deadrise and exceptionally stable down wind, being very responsive to the helm.

SEA THE VIDEO OF HER SEA TRIALS  Featuring alongside ship handling and rough weather trials
